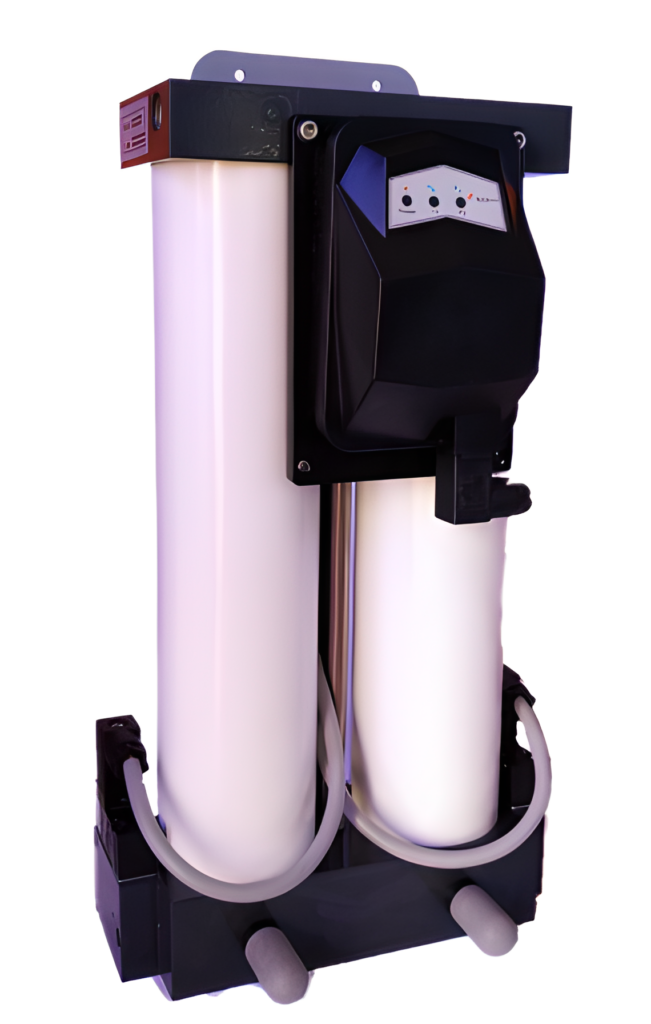

Heatless Desiccant Air Dryer
- Inlet conditions have been designed For – ISO 7183-1986 (E)
- Outlet air quality Class – ISO:8573-1:1991 (E) class 3
- Low noise level
- Free from corrosion & scale formation
- Low-pressure drop
Specifications:
Flow: 5 scfm
Max Working Pressure:12.5 bar (g)
Rated Inlet Temperature:38C
Max Rated Inlet Pressure:7 bar (g)
Cycle Time:4 Minutes
Operating Voltage:85-300 VAC 50 / 60 Hz 1Ph
Outlet Conditions: Dry air at -20 C PDP
Applications:
● Paint spray booths
● Tool, Valve, Cylinder protection
● Food packaging machine
● Auto Garage
● Textile & Garment
● SPM
● Instrumentation
Operating Principles:
Wet air enters and flows from the top block to the bottom block via the air transfer tube. The air then flows to the shuttle inlet valve and is diverted to tower 1. The compressed air flowing through tower 1 is dried to a –20°F PDP and exits. A small portion (12%) of the compressed air is expanded to near atmospheric pressure by passing through

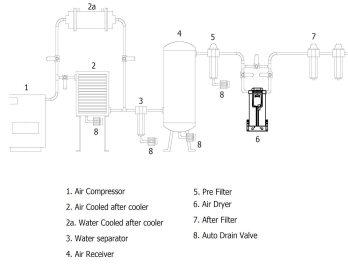

Recommended installation:
