Series CTD
- Easy to mount at all locations
- Condensate discharging is no more a problem
- On / Off timing adjustable
- Large orifice for the effective drain of dust and condensate
- Maintains and cleans drain valve without removing it from
service - Design Patented

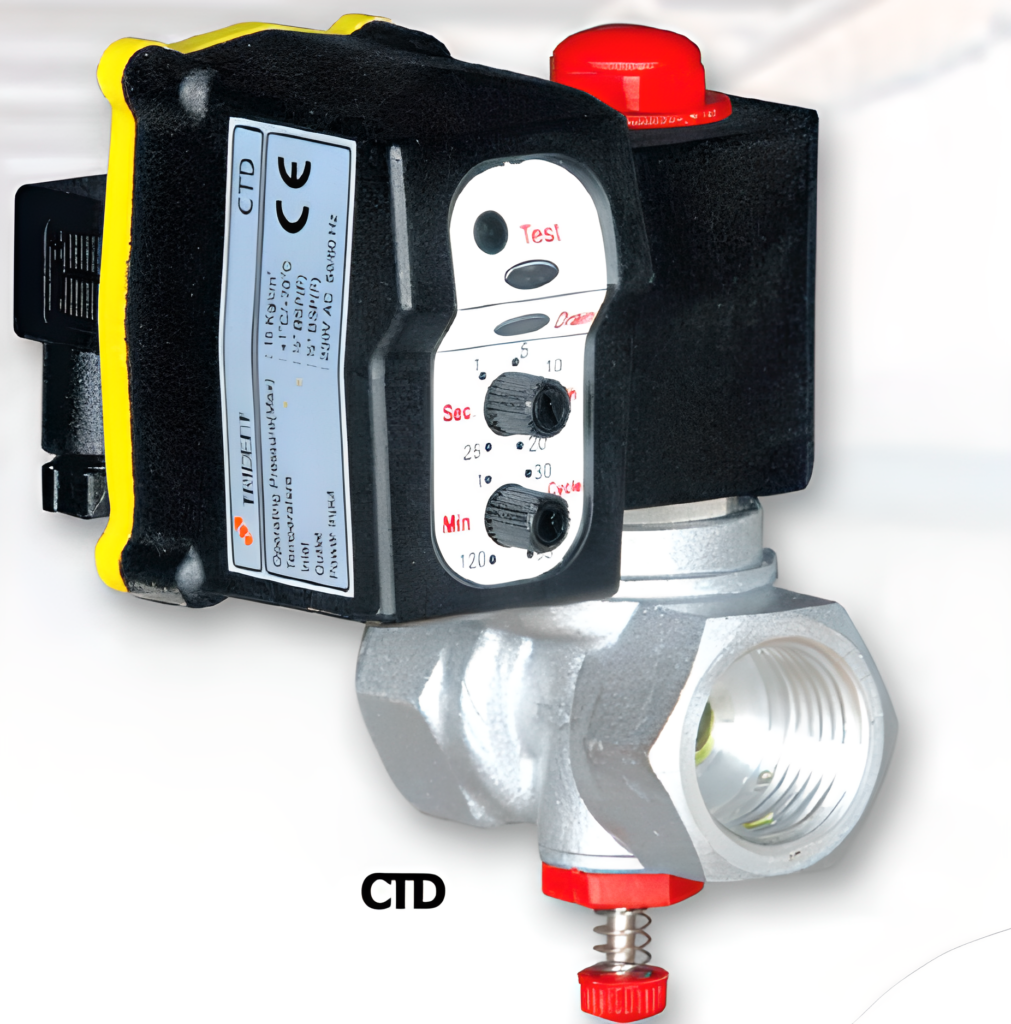

NEW COMPACT TIMER DRAIN - Model - CTD / CTD HD
CTD is the culmination of years of manufacturing drains. It takes care of all problems normally associated with drains. The controller is now built with an ultra-reliable microcontroller and features dual adjustment of both cycle and drain. The valve has a large orifice and a special solenoid operator section to discharge dust.
Should the valve still get clogged you can service it without removing it from the installation. Press the knob at the bottom of the valve to mechanically clear all the sludge. Electronically flush a few times and now it is fully serviced and ready for use.
| Item Code | PE067 |
|---|---|
| Voltage | 230 V AC / 50 Hz / 1 Ph |
| Power | 15 watts Max |
| Protection | IP54 |
| Elec. Connection | DIN 43650 Micro |
| Inlet | 1/2” BSP (F) |
| Outlet | 1/2” BSP (F) |
| Pressure | 2 - 16 Kg/cm2(g) |
| Valve Orifice | 4 mm |
| Timing | Cycle : 1 min to 120 min Adjustable |
| Weight | 350 Grams |
| Dimensions (L x B x H) | 80 x 70 x 105 |
| On line service | Yes : Integrated Mechanical + Electronic Flush |
| Control | Micro controller based |
| Maximum discharge | 150 litres/hour at 7Kg/cm2(g) |
| Operating Temp | 1 – 70OC |
| Compressor Capacity | 1Upto 850 m3/hour |
